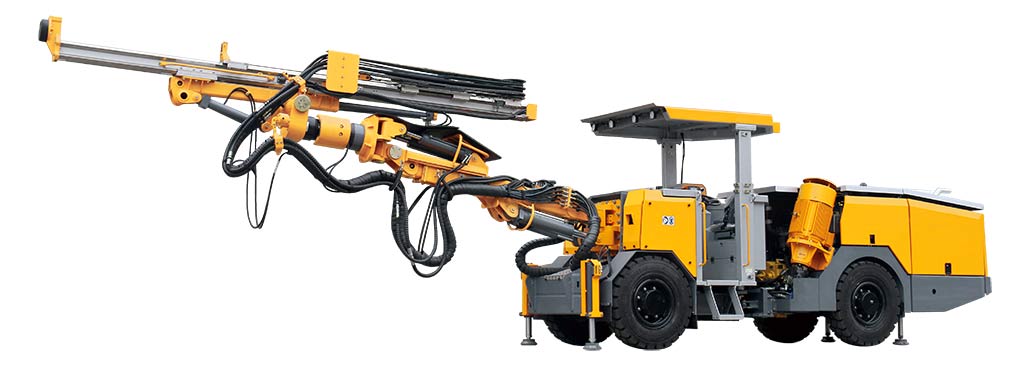

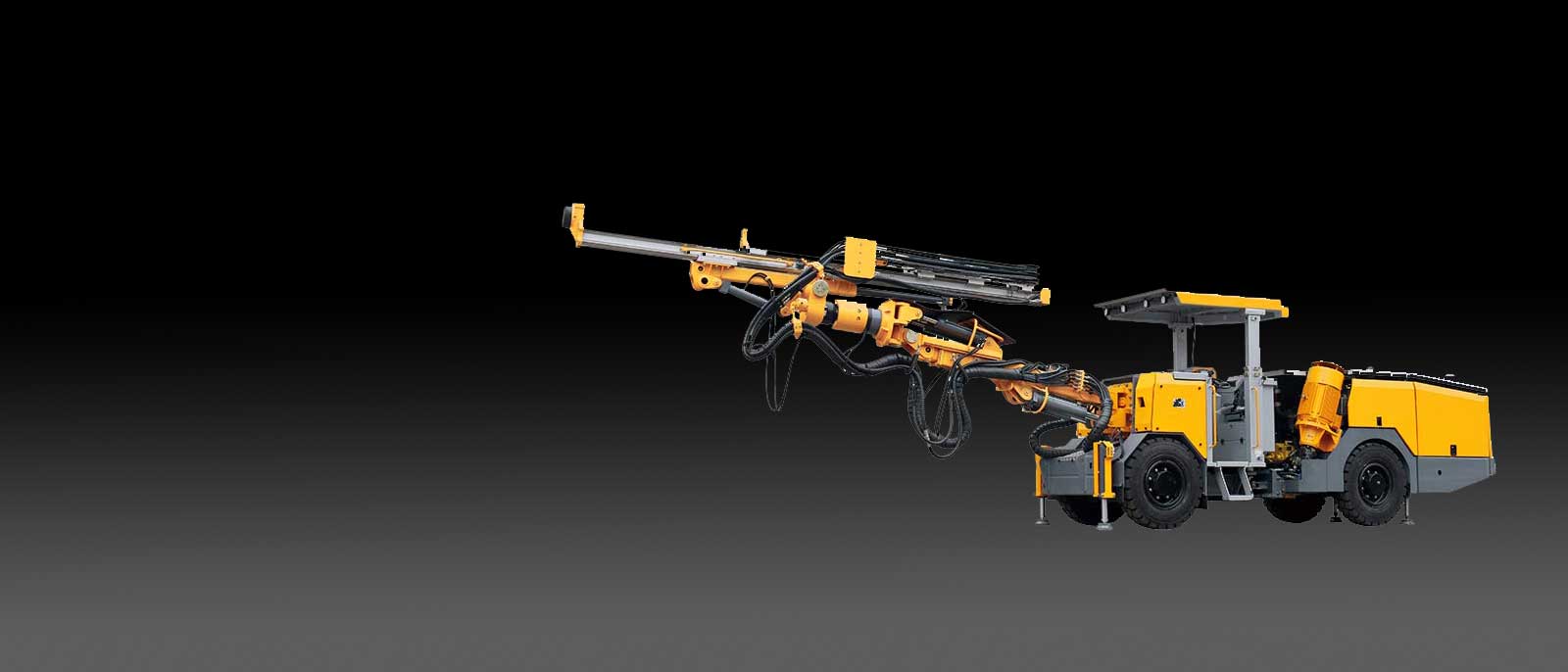

UJ 21 SPECIFICATIONS | |||
HOLE RANGE | mm | 45 - 89 | |
ROD LENGTH | mm | 3660 | |
DRILLING DEPTH | m | 20 | |
HYDRAULIC DRIFTER | IMPACT POWER | Kw | 20 |
ROTATION SPEED | Rpm | 0 - 340 | |
ROTATION SYSTEM | Independent Rotation | ||
SHANK | R32 / T38 | ||
FEED BEAM LENGTH | 5500 | ||
WATER PUMP | WORKING PRESSURE | Bar | 12 |
FREE AIR DELIVERY | m3/h | 4 | |
AIR COMPRESSOR | WORKING PRESSURE | Bar | 8 |
FREE AIR DELIVERY | m3/h | 0.3 | |
DIESEL ENGINE | Brand | Cummins | |
Kw | 60 |
||
ELECTRIC MOTOR | Kw | 55 | |
CHASSIS | TRAMMING SPEED max | Km/h | 12 high - 4,5 low |
CLIMBING ABILITY | () ° | 14 | |
TURNING RADIUS (I/O) | mm | 2.800 / 4.900 | |
WORKING FACE (WxH) | mm | 6.600 x 5.670 | |
WORKING AREA | m2 | 35 | |
WEIGHT | Kg | 11000 | |
SHIPPING DIMENSIONS (LXWXH) | mm | 10.920 x 1.650 x (2100 Retr- 2.800 Ext) |
