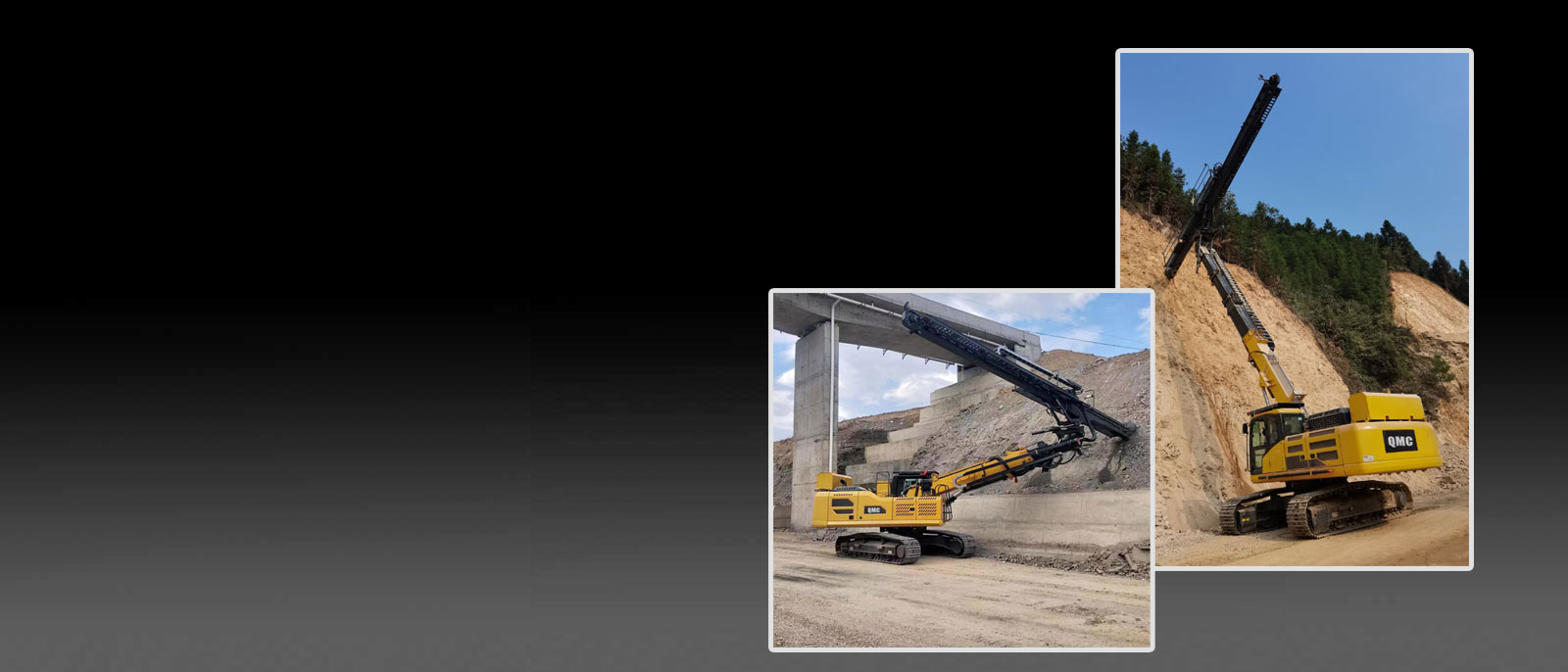

The Solution in a wide range of construction, mining, railway, highway and other
engineering projects.
Zero assembly time
No scaffolding cost
High productivity
Safety
Able to drill at a height of 15-24 m
360° platform rotation
It can perform Top Hammer, DTH, Rotary and Auger drilling
Compressor on board
Feed stroke 10 m. It can reach required depth of most anchor bolting applications just
with a single pass.

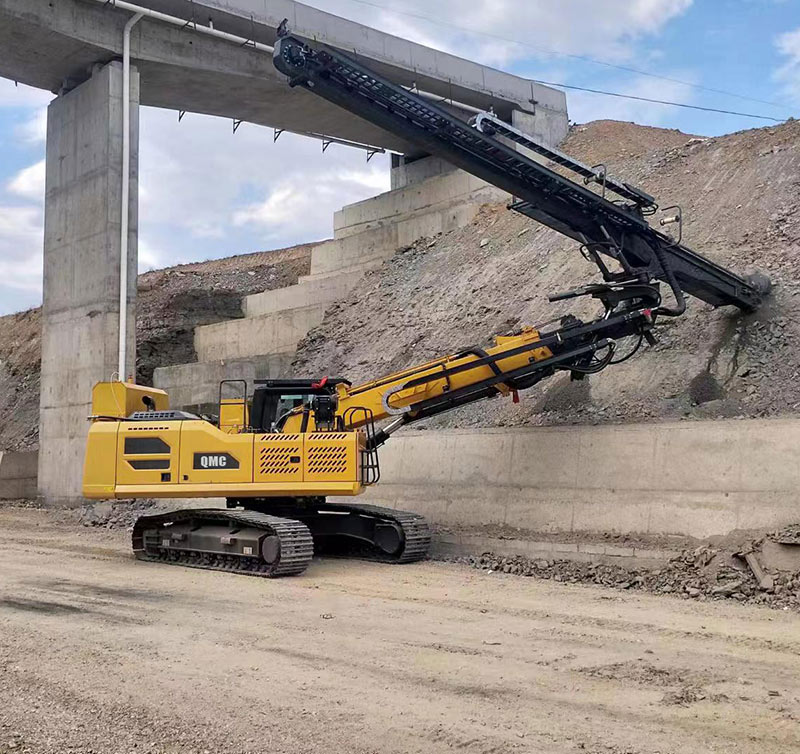

| SLOPE STABILIZATION DRILL RIG | QMC S6 | QMC S8 | ||
| HOLE RANGE | TOP HAMMER | mm | 45 - 89 | |
| DTH- ROTARY-AUGER | mm | 76-180 | ||
| AIR COMPRESSOR | WORKING PRESSURE | Bar | 15 | 20 |
| FREE AIR DELIVERY | m3/min | 11 | 13 | |
| DRILLING HEIGHT (HORIZONTALLY) | m | 15 | 20 | |
| DRILLING DEPTH | m | > 30 | >40 | |
| FEED STROKE | mm | 10000 | ||
| PLATFORM ROTATION | ( ) 0 | 360 | ||
| SIDE DRILLING CAPABILITY | ( ) 0 | 90 | ||
| ENGINE | Brand | Cummins | Cummins | |
| Kw | 190 | 228 | ||
| ROTARY HEAD | ROTATION SPEED | Rpm | 0-240 | |
| ROTATION TORQUE | Nm | 3900 | ||
| FEED FORCE | KN | 69 | ||
| TRAMMING SPEED | Km/h | 3,5 / 5,1 | ||
| CLIMBING ABILITY | ( ) 0 | 25 | ||
| WEIGHT | Kg | 31.800 | 40.000 | |
| DUST COLLECTOR | STANDARD | |||
| SHIPPING DIMENSIONS | (LXWXH) mm | 14920 x 3190 x 3350 | 16380 X 3200 X 3580 | |
