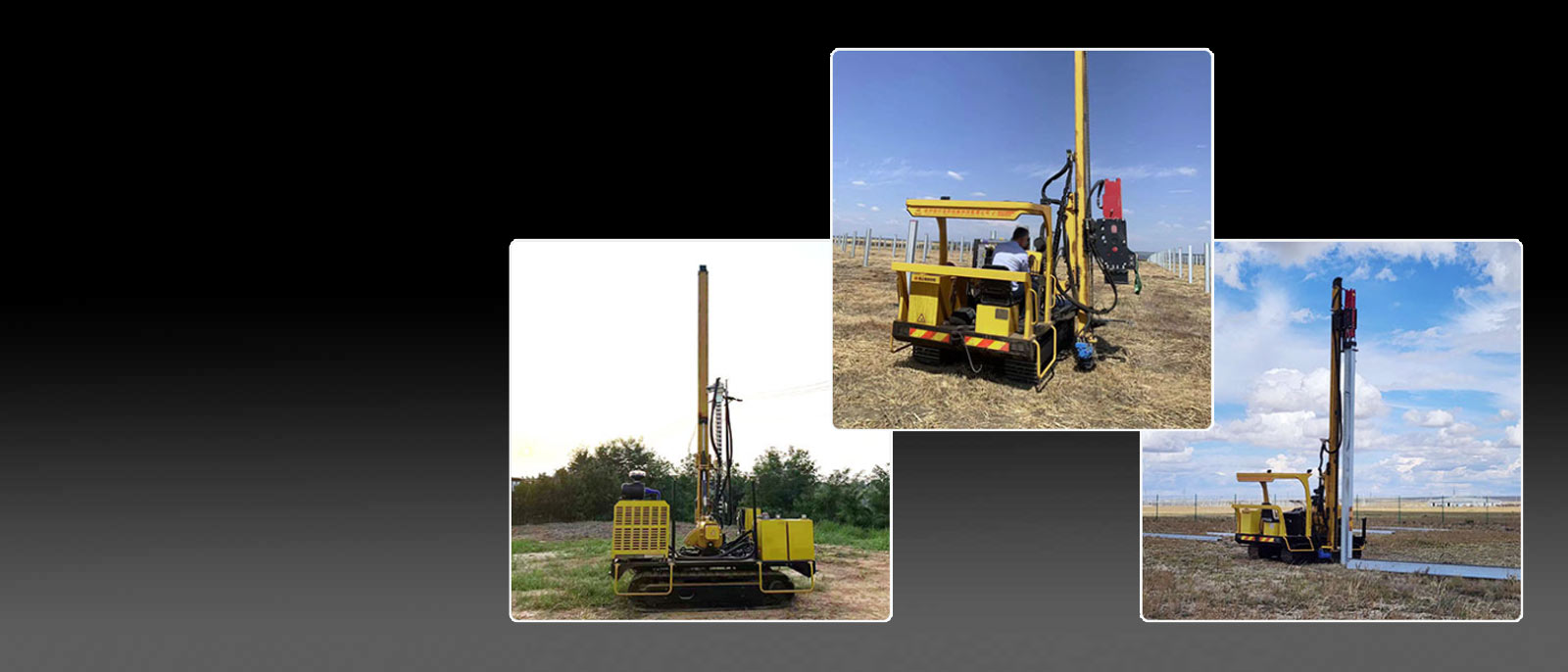

| PILE DRIVERS | QMC-H51 | ||
| RAMMING | PILING HEIGHT | mm | 5000 (max 6000) |
| PILE DEPTH | mm | 3500 | |
| PILE HEIGHT (max) | mm | 6000 | |
| DTH - AUGER / SCREW | TORQUE | Nm | 4000 |
| DIAMETER max | mm | 300 | |
| DRILLING DEPTH max | mm | 3500 | |
| ROD LENGTH | mm | 3500 | |
| ENGINE | CUMMINS | Kw | 70 / 97 |
| DRILLING INCLINATION | LEFT / RIGHT | ( 0 ) | 30 / 10 |
| FRONT / REAR | ( 0 ) | 70 / 30 | |
| HYDRAULIC SYSTEM | PRESSURE | Bar | 160 |
| OIL FLOW | lt/min | 70 | |
| CLIMBING ABILITY | ( 0 ) | 30 | |
| GROUND CLEARANCE | mm | 230 | |
| TRAMMING SPEED | Km/h | 3 | |
| WORKING DIMENSIONS | mm | 3500 X 2200 X 5000 | |
| SHIPPING DIMENSIONS | mm | 6500 X 2200 X 2500 | |
| WEIGHT | Kg | 4500-5500 | |
