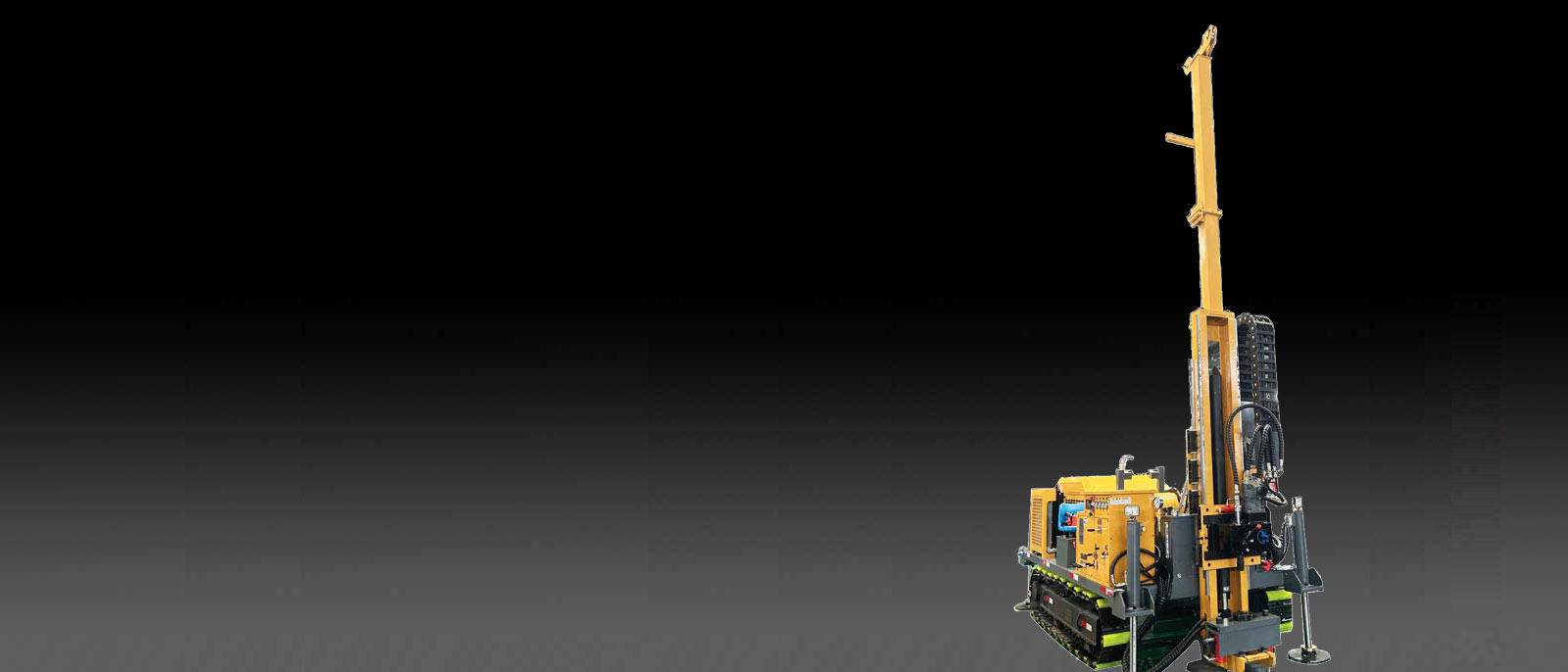

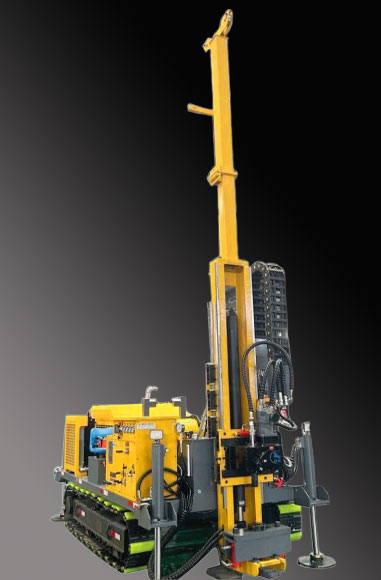

| QMC 1000 SPECIFICATIONS | ||
| PUMP | lt/min | 160 |
| Bar | 80 | |
| HOLE DIAMETER / SAMPLE DIAMETER | mm | Wireline BQ 59,7 / Sample 40,7 |
| Wireline NQ 75,7 / Sample 50,6 | ||
| Wireline HQ 96 / Sample 63,5 | ||
| Wireline PQ 122,6 mm / Sample 85 | ||
| DRILLING DEPTH | m | Wireline BQ > 1000 |
| Wireline NQ > 800 | ||
| Wireline HQ > 600 | ||
| Wireline PQ > 400 | ||
| DRILL TUBE DIAMETER | mm | Wireline BQ 55,6 |
| Wireline NQ 69,9 | ||
| Wireline HQ 89 | ||
| Wireline PQ 114,3 | ||
| FEED STROKE | m | 1800 / 3500 |
| TRAMMING SPEED | Km/h | 3 |
| CLIMBING ABILITY | ( 0 ) | 25 0 |
| ENGINE | Kw | CUMMINS 133 |
| ROTARY HEAD SPEED / TORQUE max | Rpm | 0-1250 |
| Nm | 1300 | |
| MAST HEIGHT | m | 9,5 m |
| DRILLING ANGLE | ( 0 ) | 45-90 |
| FEED FORCE | KN | 110 |
| PULL UP FORCE | KN | 220 |
| WIRE LINE WINCH PULL UP FORCE | KN | 10 |
| WEIGHT | tn | 7,5 |
| SHIPPING DIMENSIONS (LXWXH) | mm | 4850 X 2100 X 2200 |
